Recently, trenchless tech has been used in different areas. Crossing the rock stratum is becoming more and more common. With the complexity of construction conditions and the increase of construction cost, the traditional rock crossing technology has troubled the trenchless construction enterprises at home and abroad with its high cost, low efficiency, high pollution and other factors. Therefore, the double wall drilling technology (a new rock crossing technology: the external pipe to drive guided drilling and the internal pipe to drive tricone bit to break rock) is more and more favored by customers, especially for short-distance.

Since 2016, Goodeng GD450AT-L made contributions to lots of rock crossing project at home and abroad.



To meet the complex needs of rock working condition, Goodeng R&D team did all their best to improve, update the technology. The first set of Goodeng GS500AT-L has helped the customer cross six rock pipelines in Mianyang, Sichuan in 20 days, with a total length of more than 2100 meters. The customer highly praised "An Unbeatable Rival of Rock".

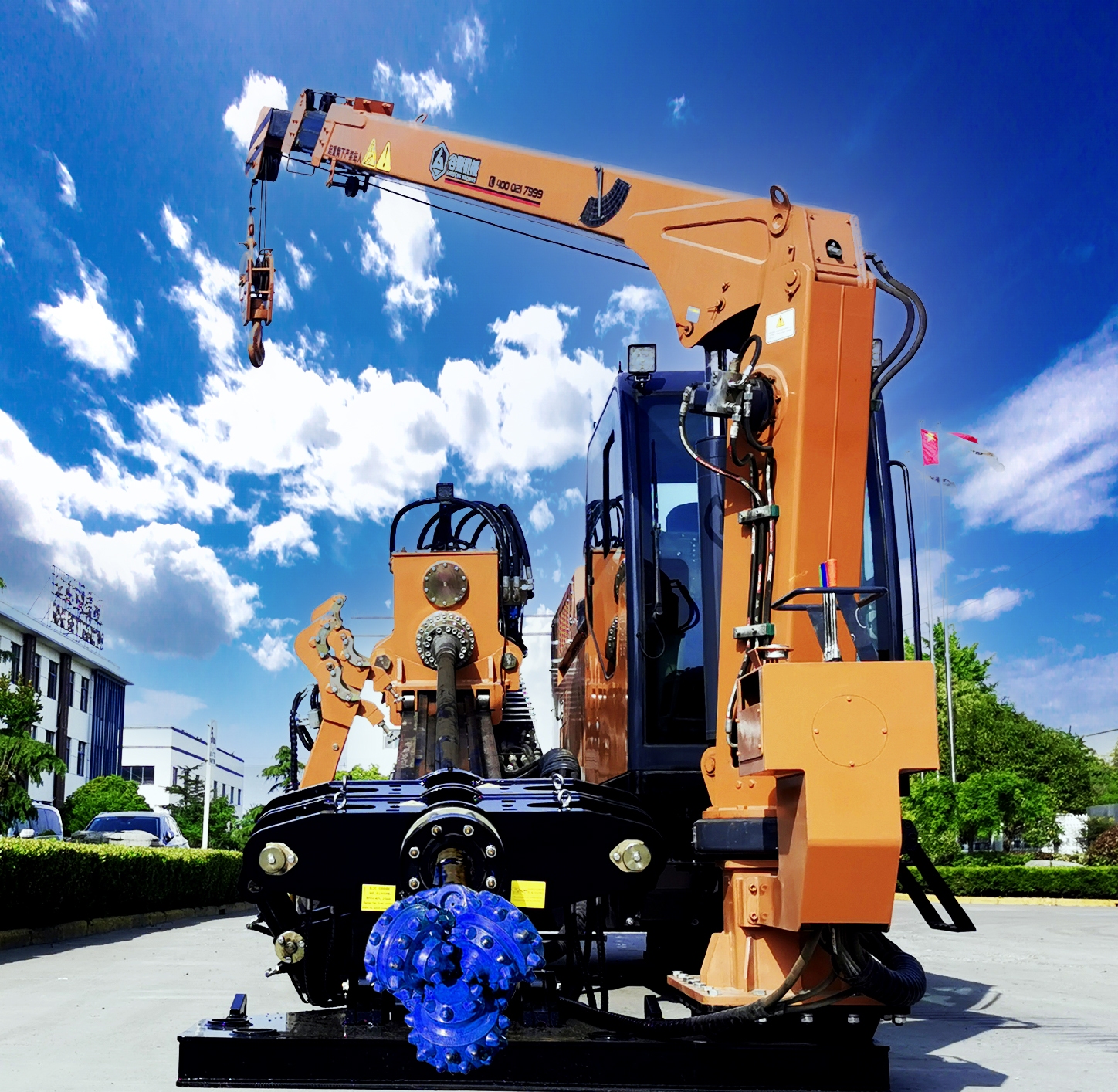

       GS500AT-L All terrain Hdd machine specifications



Engine power	194kW	Rig weight	16500kg
Caterpillar   crawling speed	3-5km/h	Dimensions(L×W×H   mm)	9240×2350×2500
Max   thrust&pullback force	500KN/1000KN	Max   thrust&pullback speed	55m/min
Max torque of   external rod	27000Nm	max rotation speed   of external rod	120r/min
Max torque of   internal rod	3000Nm	Max rotation   speed of internal rod	240r/min
Max mud pump flow	600L/min	Max mud pump   pressure	10MPa
Entry drill angel	12-20°	Max climbing   gradient	18°
Max back-reaming   aperture diameter	1500mm (soil depended)	Max crossing   length	600m (soil depended)

       Why choose GS500AT-L

1.“High configuration”----It is equipped with Cummins power system, Germany Linde hydraulic system, humanized cabin, rotation manipulator which is Goodeng’s patent, PLC constant power control system, 10 "ultra large integrated display screen, crane and other high performance configuration.

2. High efficiency ---- Double drive power head adopted the industry's leading double-wall drilling technology, and the internal rod is used for cutting rocks; High output rotational speed, high torque, strong impact resistant ability, fast drilling speed, the efficiency of construction is more than 5 times of conventional mud pump. The rock with 50MPa hardness can be drilled more than 20m per hour. Prepositive sonde hosing makes the distance of bit angle shorter and the accuracy of guidance higher.

3. Low cost ---- All Terrain technology enables enhanced rock drilling at a Low fluid level, decreasing overall jobsite waste, minimizing cleanup and reducing environmental impact.
